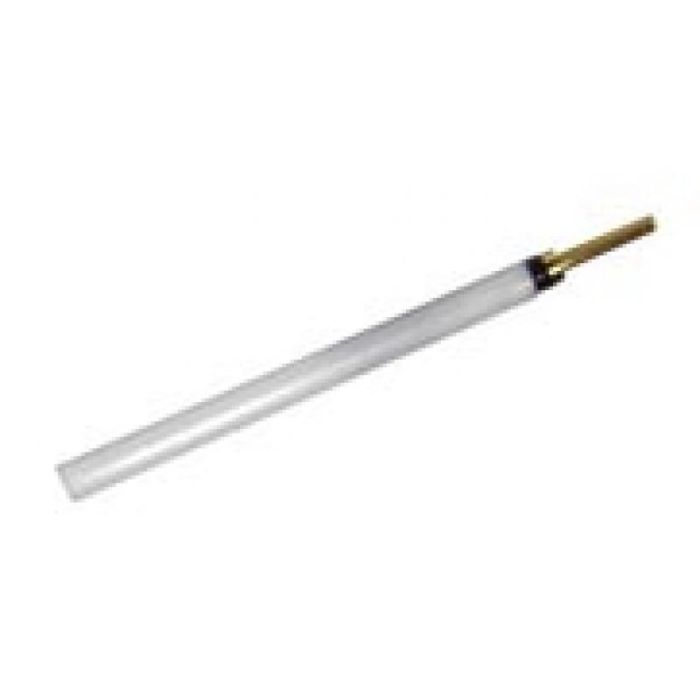

Nano Reference Electrode

This reference electrode is made with carbon nanotube technology, creating a real miniaturized solid state electrode. Its small size means it can be used in ultra-low volume samples.

It can be used together with any NanoIon Selective Electrode to create a functioning electrode. The ion selective and reference electrodes can both be connected to the EPU452, EP353 or EPU353 isoPods using the EC008 BNC to alligator clips cable.

• Type: Half Cell Electrode
• Electrode Diameter: 2.5 mm
• Electrode length: 45 mm
• Connection: gold-plated pin with 1 mm diameter
• Casing material: PVC
• Not sensitive to changes in light intensity
• Not sensitive to oxygen or redox species
• Cannot be used in organic solvents
• Working temperature range: 5º to 50ºC
• Working pH range: see Specifications Table
