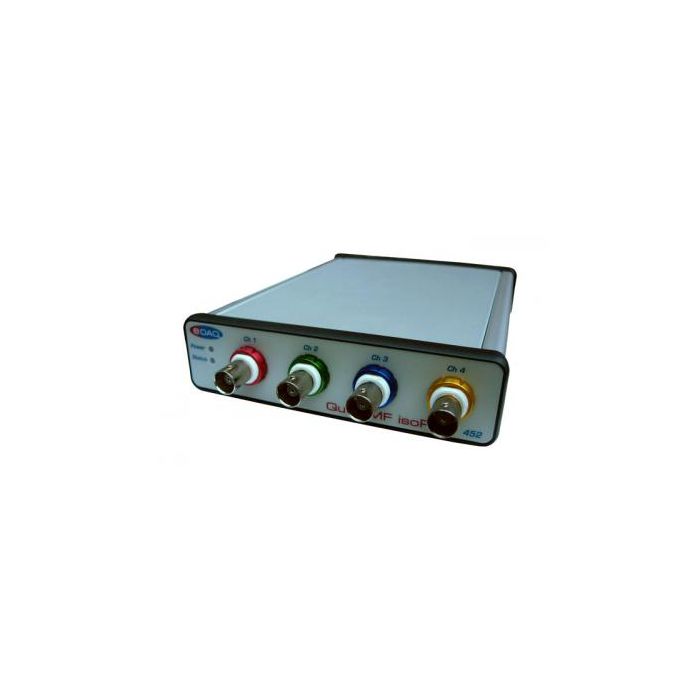

Quad Multi Function isoPod™

Cost-effective multiprobe system

The EPU452 system consists of four individually isolated signal conditioning and measuring circuits communicating with a PC via the USB. Each input can be individually configured and reconfigured by software to measure data from the following sensors types:

• pH, ion selective electrode (ISE), Oxidation Reduction Potential (ORP)
• Zero Resistance Ammeter (ZRA) and High Impedance Voltmeter
• Dissolved oxygen (dO2)
• Conductivity: 2 µS to 200 mS with a variety of conductivity sensors.
• Amperometric biosensors and other amperometric detectors with adjustable Poise voltage.
• Temperature: using thermistor (0 to 70ºC) or RTD (-25 to +250ºC).

At fraction of the cost, the EPU452 provides the same function as four independent laboratory instruments.

Powerful software Included

Pod-Vu software provides the means display and record continuous experimental data. Supported by a serial protocol the system can be accessed by LabVIEW and other programming languages for customers who need to integrate the system into a laboratory data system. An independent Configuration Utility allows the system to be reconfigured to meet new experimental protocols.

Customise with you own software

You can also write your own recording, or process control, software using the 'virtual serial protocol' provided over the isoPod's USB interface. The serial protocol can be accessed through your own software, for example in LabView, C#, Visual Basic, etc. or by terminal emulation software compatible with serial (COM) ports, eg TeraTerm, HyperTerminal or other serial (COM) port compatible software that can log responses into a file or Excel document, eg WinWedge, HyperAccess.

Specifications

• Input connectors:    4, BNC
• Computer connection:    USB
• Isolation:    > 250 Vrms independent on each channel
• Power:    5 V DC
• Dimensions:    108 x 58 x 35 mm
• Weight:    ~200 g

• Input impedance:    1013 ohm
• Input ranges:    ±2000 mV

• Input impedance:    10^13 ohm
• Input ranges:    ±2000 mV (> pH 0 – 14), ±200 mV (pH 3.6 – 10.4)
• Calibration:    Single or double point (with Pod-Vu or MF Configurator)

• Input ranges:    200, 20, 2, 0.2, 0.02 0.002 mS
• Calibration:    Single point. Conductivity or TDS

• Probe type:    1000 ohm platinum RTD
• Probe error:    ±(0.10 + n/600) °C at n°C with ET021 RTD probe
• Temperature range:    –25 to +125°C

• Probe type:    30 kohm thermistor
• Probe error:    ±0.2 °C (0 to 70°C) with ET020 Thermistor Probe
• Temperature range:    –25 to +125°C

• Input ranges:    ±2 mA, ±200, ±20, ±2 µA, ±200, ±20 nA
• Polarization:    0, then –500 to –1000 mV in 50 mV steps
• Zero offset range:    ±20 µA
• Typical RMS noise:   1 pA when sampling at 1/s
• Calibration:    Single or double point (with Pod-Vu or MF Configurator)

• Input ranges:    ±2 mA, ±200, ±20, ±2 µA, ±200, ±20 nA
• Polarization range:    ±2000 mV in millivolt steps
• Zero offset range:    ±20 µA
• Typical RMS noise:    1 pA when sampling at 1/s
• Calibration:    Single or double point (with Pod-Vu or MF Configurator)
