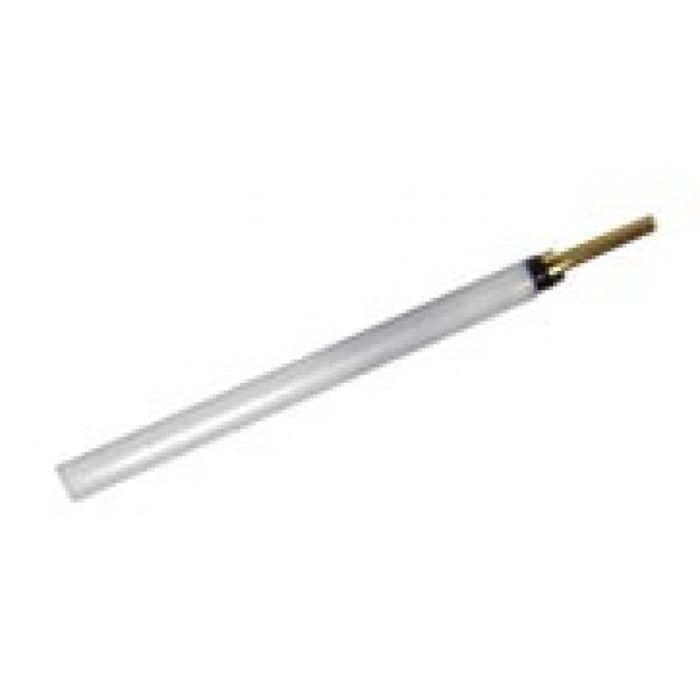

Nano Ion-Selective Electrodes

This range of ion selective electrodes is made with carbon nanotube technology, creating real miniaturized solid state electrodes. Their small size means they can be used for measurements in ultra-low volume samples.

They are half-cell electrodes and must be used with a separate reference electrode such as the ET1613 Nano Reference Electrode.

The ion selective and reference electrodes can both be connected to the EPU452, EP353 or EPU353 isoPods using the EC008 BNC to alligator clips cable.

The following nano electrodes are available:

• Reference Electrode
• pH
• NH4+ Ammonium
• Br- Bromide
• Ca2+ Calcium
• CI- Chloride
• Cu2+ Copper
• I- Iodide
• Li+ Lithium
• Mg2+ Magnesium
• NO3- Nitrate
• NO2- Nitrite
• ClO4- Perchlorate
• Ag+ Silver
• K+ Potassium
• Na+ Sodium
• S2- Sulfide

Specifications

• Type: Half Cell Electrode
• Electrode Diameter: 2.5 mm
• Electrode length: 45 mm
• Connection: gold-plated pin with 1 mm diameter
• Casing material: PVC
• Not sensitive to changes in light intensity
• Not sensitive to oxygen or redox species
• Cannot be used in organic solvents
• Working temperature range: 5º to 50ºC
• Working pH range: See specifications table
