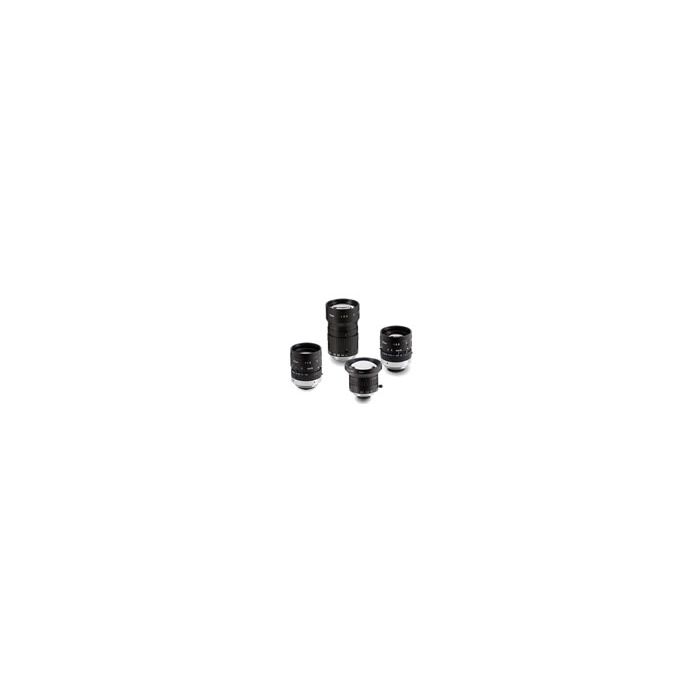

AZURE Photonics MM Megapixel series Machine Vision Lens
SKU
FI-MM
- 9 Models with focal lengths from 4mm to 75mm for sensors up to 2Mpixel
- C-mount, Manual focus and iris
- Robust metal mechanical design with lock screws and engraved scales for iris and focus.
- Best-selling very competitive series, suitable for a wide range of machine vision applications.
The AZURE Photonics / FIFO Optics MM lenses are very high quality C-mount lenses designed for industrial applications like robotics and machine vision. They are intended to deliver quality images when used on cameras with 1/2 or 2/3-inch sensors up to 2 megapixel resolution.
Among the features are locking focus and iris rings for use in areas where the camera may experience significant vibration.
The lenses are coated for 400 - 950nm wavelength.
Among the features are locking focus and iris rings for use in areas where the camera may experience significant vibration.
The lenses are coated for 400 - 950nm wavelength.
Model | 1/2" Format | MOD (mm) | Filter Thread (mm) |
|
FI-0420MM | 4mm F2.0 | 100 | - | |
FI-0614MM | 6mm F1.4 | 100 | 30.5x0.5 | |
FI-0814MM | 8mm F1.4 | 100 | 30.5x0.5 | |
Model | 2/3" Format | |||
FI-1214MM | 12mm F1.4 | 100 | 30.5x0.5 | |
FI-1614MM | 16mm F1.4 | 200 | 30.5x0.5 | |
FI-2514MM | 25mm F1.4 | 300 | 30.5x0.5 | |
FI-3514MM | 35mm F1.4 | 500 | M30.5x0.5 | |
FI-5020MM | 50mm F2.0 | 1000 | M30.5x0.5 | |
FI-7524MM | 75mm F2.4 | 1000 | M34x0.5 |
SKU | FI-MM |
---|---|
Manufacturer | FIFO Optics |
Country of Origin | China |
Harmonized Code | 90021160 |
