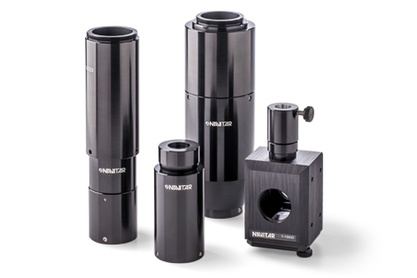

Navitar MTL Imaging System
SKU
NA-MTL
Modular Micro Imaging System for Infinity-corrected Objectives
- Superior image quality
- 1X to 100X magnification
- For up to 35 mm full-frame asensors
- Coaxial or fluorescence illumination options
Navitar’s MTL line of modular tube lenses offers the ideal optical solution for OEM and research imaging and measurement applications including metrology, flat panel inspection and cell imaging.When used with a suitable 2X to 50X microscope objective, the MTL Imaging System offers magnifications between 1X and 100X with superior image quality in colour or monochrome, and is adaptable for cameras with large sensors.
Navitar MTL system pageMTL Imaging System Advantages
- Apo and infinity corrected optics designed for superior imaging quality
- Lateral and axial chromatic aberrations corrected across the entire field
- Wide field design for close-up imaging
- 0.5x, 1x and 2x modular design will cover camera sensors up to 33mm
- 2 and 3 position objective changer for using multiple objectives
- Useful with brightfield, transmitted, Koehler illumination and fluorescent imaging applications
Modular Design
A MTL imaging system built by combining three parts:- An tube lens and camera adapter with magnification of 0.5X, 1X, or 2X
- A straight, coaxial illumination or fluorescense cube center part
- A microscope objective with magnification between 2X to 50X
Options
Further enhancing the versatility of the MTL Imaging System are extra options:- Motorized linear lens changer for 2, 4 or 6 objectives
- Fiber, LED or fluorescent illumination options
| SKU | NA-MTL |
|---|---|
| Manufacturer | Navitar |
| Country of Origin | Japan |
| Harmonized Code | 9002.11 |
