CapTite™ fittings & Connectors
CapTite™ fluid routing components provide leak-free connectivity, even at high pressures, for fluid circuits with 360μm capillary, 1/32" & 1/16" tubing. CapTite components are designed for low dead volumes and easy cleaning, enabling long life over multiple runs.
-
Interconnect YFrom €29.68
To €30.82
Multiport fitting for rerouting or combining flow streams. Available for use with 360 um capillary, 1/16" or 1/32" tubing via one-piece fittings (not included). Can be mounted to LabSmith breadboards. Learn More -

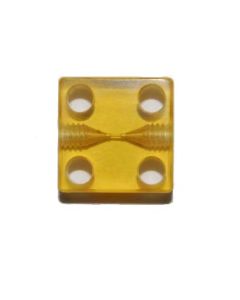

Union Adapter€34.25Union fitting for connection to 360 um capillary and 1/32" tubing via one-piece fittings (not included). Material: Ultem® or Acrylic (part number ending in 'A' is Acrylic). Can be mounted to LabSmith breadboard. Learn More -
Bonded-Port ConnectorFrom €13.70
To €15.98
Bonds to port on chip for capillary-chip interface. Compatible with ~1mm port size. Material: Ultem®. Interfaces with 360um capillary, 1/32" or 1/16" tubing (via one-piece fitting) or chip reservoir.
C360-400S: Slim (2.8mm diameter) bonded-port connector for use in tight spaces. Available for 360um capillary interface only.
NEW! Now available for 1/16" tubing. Learn More -
Breadboard ReservoirFrom €68.49
To €91.32
Reusable PEEK™ reservoirs available in 1.1ml or 5ml volume. Mounts to LabSmith breadboards.
Requires 3-4 Labsmith fittings or plugs. Learn More -

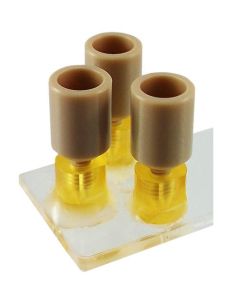

Chip Reservoir for 360um capillary€15.98 As low as €11.99Threads into Bonded Port Connector to provide fluid reservoir. Also interfaces with luer tip syringe for low pressure connection to syringe. Material: PEEK; Volume: 85ul. Learn More -
Filter Holder for 360um capillary€91.32 As low as €68.49PEEK™ connector for holding filter - can be used with a variety of filters including 3M™ Empore™ solid phase extraction filters (not included). For 360um capillary. Learn More -

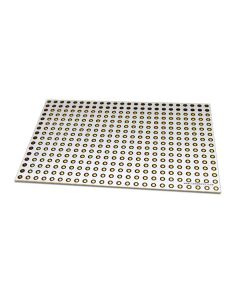

BreadboardFrom €52.51
To €75.34
4" x 6" platform with 0.25" hole spacing for mounting your fluid circuit. Suitable for all tubing sizes. Secure to breadboard using 2-28 self-tapping screws. Use 1/4" long screws to mount valves and breadboard reservoirs; 1/2" long screws for mounting interconnects.
LS-600-CH includes a 1" x 3" cutout for mounting and viewing a slide or microfluidic chip. Interfaces with LabSmith SVM340 breadboard stage.
Chip clips, electrode clips, and breadboard mounting hardware sold separately. Learn More
