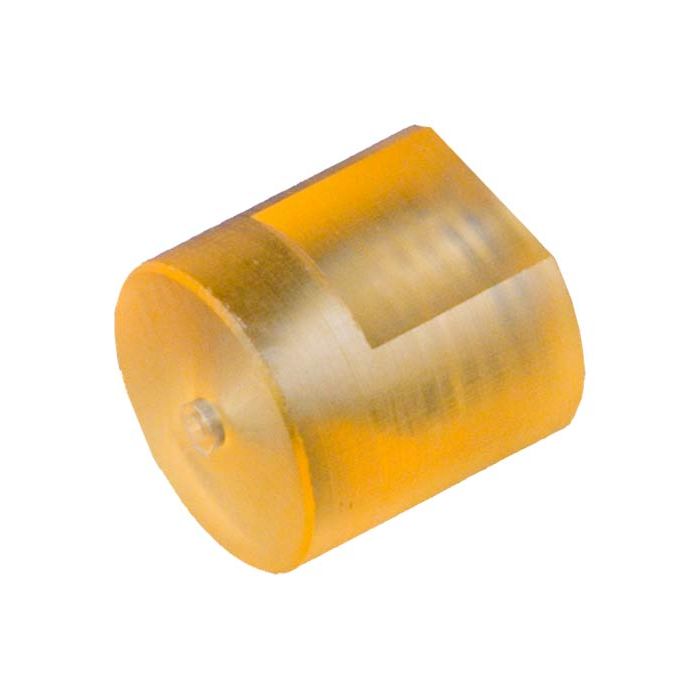

Bonded-Port Connector
From €13.70
To €15.98
SKU
LS-400
Bonds to port on chip for capillary-chip interface. Compatible with ~1mm port size. Material: Ultem®. Interfaces with 360um capillary, 1/32" or 1/16" tubing (via one-piece fitting) or chip reservoir.
C360-400S: Slim (2.8mm diameter) bonded-port connector for use in tight spaces. Available for 360um capillary interface only.
NEW! Now available for 1/16" tubing.
C360-400S: Slim (2.8mm diameter) bonded-port connector for use in tight spaces. Available for 360um capillary interface only.
NEW! Now available for 1/16" tubing.
The LS-400 bonded ports attach to glass, PMMA, COC and other hard polymer materials with the LS-EPOXY 2-component epoxy adhesive.
Bonded port mounting instructions
LS-C360-400 for use with 360um OD capillary
LS-T132-400 for use with 1/32" OD tubing
Bonded port mounting instructionsLS-C360-400 for use with 360um OD capillary
LS-T132-400 for use with 1/32" OD tubing
| SKU | LS-400 |
|---|---|
| Manufacturer | LabSmith |
| Country of Origin | USA |
| Harmonized Code | 90269000 |
