Continuous Dispense Syringe Package
From €3,577.66
To €3,643.31

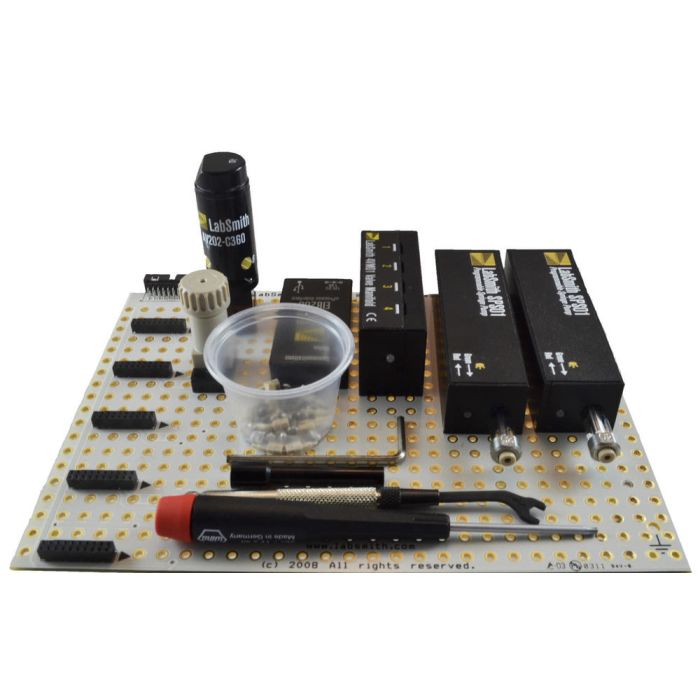

The uProcess-CD kit includes components for building a continuously dispensing setup, using one AV202 4-port valve and two syringe pumps.

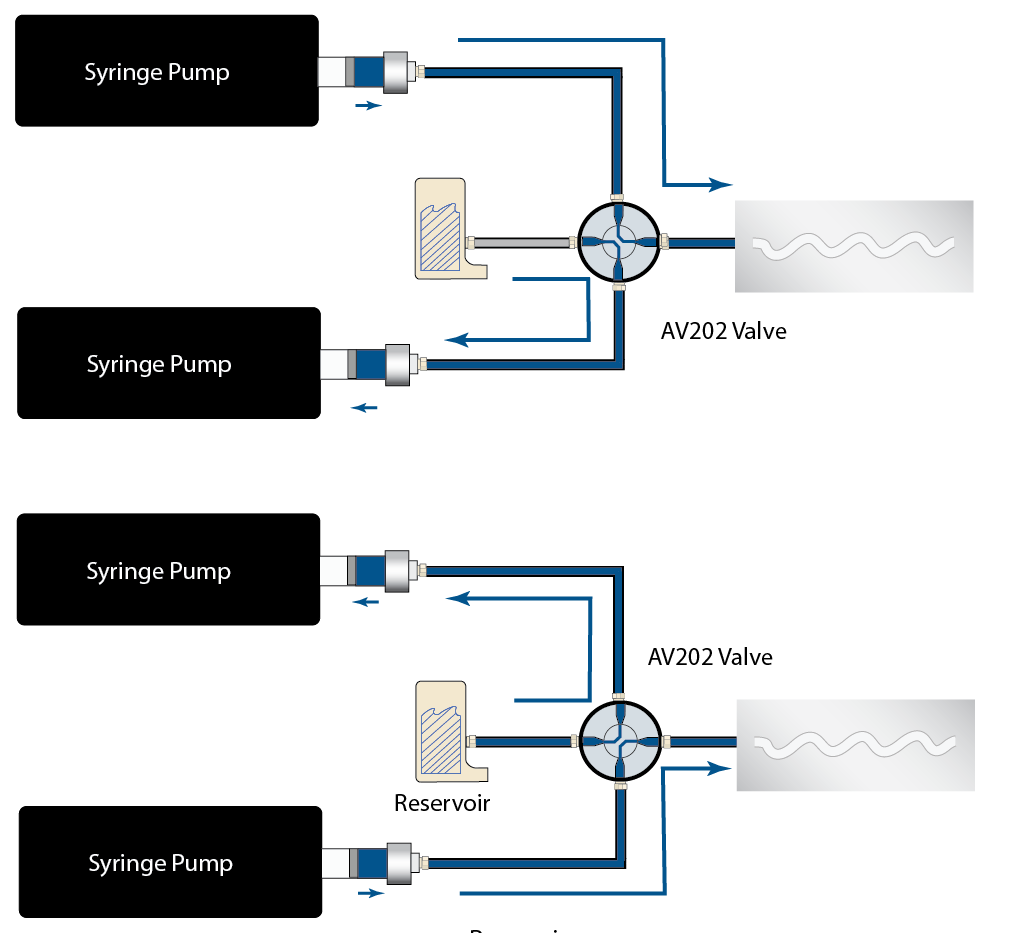

The automated uProcess™ program sequence controls the withdrawal of fluid from a reservoir to fill one syringe while simultaneously dispensing fluid to the experiment from a second syringe pump, switching between full and empty syringes for uninterrupted fluid delivery at precise, low flow rates.
The required components, board layout, uProcess program, operating parameters, and results are described in this application note.
Continous dispensing application note
| Description | Qty | CD-C360-PKG For 360um Capillary | CD-T132-PKG For 1/32" Tubing |
CD-T116-PKG For 1/16" Tubing |
| SPS01 syringe pump with 1 syringe glass and plunger set |
2 | SPS01-004-C360 SPS01-020-C360 SPS01-080-C360 |
SPS01-020-T132 SPS01-080-T132 |
SPS01-020-T116 SPS01-080-T116 |
| Two-position, 4-port automatic valve | 1 | AV202-C360 | AV202-T132 | AV202-T116 |
| 4 Valve manifold | 1 | 4VM02 | 4VM02 | 4VM02 |
| Electronic interface controller with uProcess software | 1 | EIB200 | EIB200 | EIB200 |
| uProcess breadboard with 5 device connections | 1 | uPB05 | uPB-05 | uPB-05 |
| Breadboard reservoir | 1 | BBRES-5ML-C360 | BBRES-5ML-T132 | BBRES-5ML-T116 |
| One-piece fitting, interfaces syringe with capillary tubing | 10 | C360-100 | T132-100 | T116-100 |
| Capillary/Tubing | 1 | CAP360-150P | TUBE132-010P | TUBE116-030P |
| One-piece plug | 2 | C360-101 | C360-101 | T116-101 |
| Component and breadboard tools | 1 | SPS-Tools, LS-Hex, LS-Torx, LS-Screws.25 |
SPS-Tools, LS-Hex, LS-Torx, LS-Screws.25 |
SPS-Tools, LS-Hex, LS-Torx, LS-Screws.25 |
| SKU | LS-CD-PKG |
|---|---|
| Manufacturer | LabSmith |
| Country of Origin | USA |
| Harmonized Code | 90269000 |
