Cavilux high-power diode laser strobes

The CAVILUX® product family from Finnish diode laser specialist Cavitar Ltd. is based on patented pulsed high power diode laser illumination technology, capable of delivering nanosecond laser pulses with several hundred watts of peak power at frequencies up to the MHz range.

The Cavilux strobes are available with red (690nm) or near-infrared (808nm) wavelengths.

Freeze even the fastest motion

The very short pulse duration available with the Cavilux strobes makes it possible to freeze even the fastest movements without motion blur. The high peak power ensures adequate exposure of the camera even at the shortest exposure times.

See through blinding light

Unlike LED's, Cavilux laser strobes emit monochromatic light. Combined with a narrow-band optical filter matched to the laser wavelength, imaging of extremely bright phenomena like welding processes or explosions is now possible.

Speckle-free high intensity illumination

Unlike conventional diode laser strobes, which produce grainy images caused by the coherent nature of laser light, Cavilux technology results in crystal-clear images similar to those produced with LED illumination, but with an intensity million of times higher that with the brightest LEDs.

Uniform, speckle-free illumination with Cavilux strobe

Gaussian profile speckled illumination with expanded laser beam

Applications

• Welding visualisation
• Industrial web monitoring
• Flow visualisation and analysis
• Ballistics
• Ammunition testing
• High-speed microscopy

CAVILUX® products are reliable, accurate and easy-to-operate tools, designed especially for industrial use. They are equally useful in R&D.

Cavilux versions

CAVILUX® product family consists of four high end products developed for different needs:

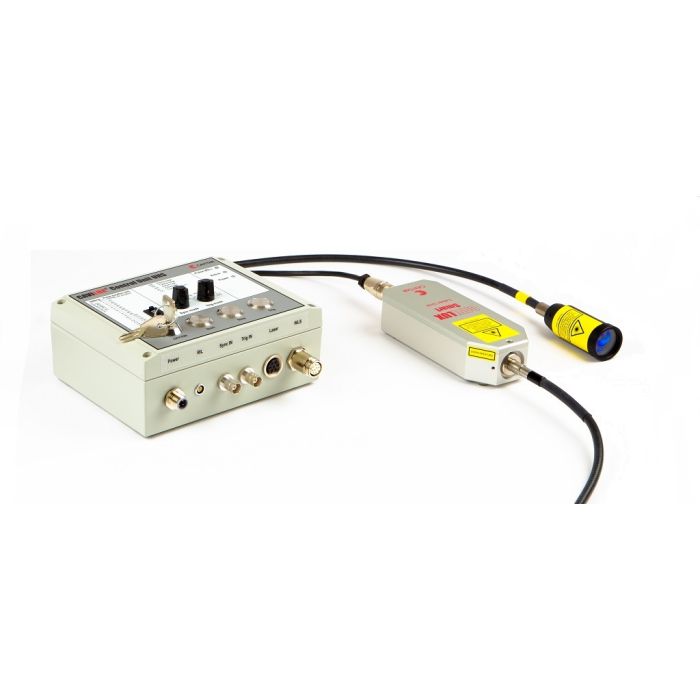

A CAVILUX® system includes one or more laser units, control unit, illumination optics and control software. All CAVILUX® products can be easily programmed and operate as stand alone units with excellent reliability.

Accessories

Light guide delivery from laser to illumination optics
Bifurcated light guide for multiple illumination optics heads
Custom designed illumination optics
Camera synchronization units

Application examples

For more images and video examples, visit the Cavitar web site.

Hybrid laser welding
CO2 laser + MAG

High-current pulsed MIG welding

Schlieren image of turbulent protection gas flow in hybrid welding

Double-exposed image of 9mm bullet right after exiting the gun. Laser is flashed twice on the same image.

Shougun bullet
