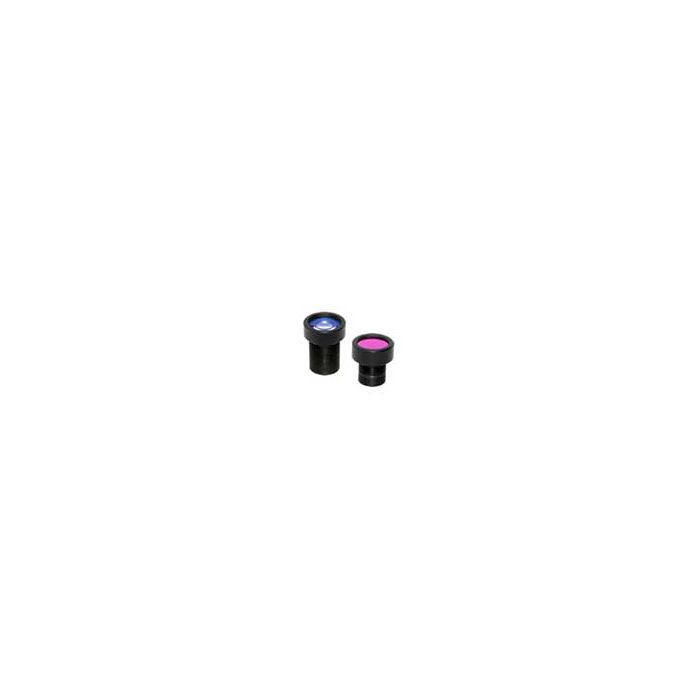

Azure Photonics Macro Board lenses for 1/2.5" to 2/3"
SKU
AZ-BMAC
High resolution board lenses for standard to 5Megapixel resolution
- Focal lengths from 4.5 to 25mm
- For 1/2.3", 1/1.8" or 2/3" sensors
- Fixed iris
- Macro types optimized for short working distance
The Azure MAC lenses are specially designed macro type lenses that give low distortion and good edge sharpness at small working distances.
 |
Macro board lenses for close-up imaging |
| Model | Focal length Aperture |
Working distance | Sensor | Distortion | |
| AZ-04516MAC | 4.5mm F1.6 | 1/2.3" | -3.5% |
|
|
| AZ-05516MAC | 5.5mm F1.6 | 100mm - inf | 1/1.8" | -1.2% | |
| AZ-0620MAC | 6mm F2.0 |
100 - 500mm |
1/1.8" | 6.5% | |
| AZ-0825MAC | 8mm F2.5 | 100 - 500mm | 1/1.8" | -0.25% |
|
| AZ-1217MAC | 12mm F1.7 | 114mm | 2/3" | -0.85% | |
| AZ-1620MAC | 16mm F2.0 | 100mm | 2/3" | |
|
| AZ-IR2520MACT | 25mm F2.0 | 250-350mm | 1/2" | 1% |
|
| AZ- 2520MAC | 25mm F2.0 | 110mm |
2/3" | 0.17% | |
| SKU | AZ-BMAC |
|---|---|
| Manufacturer | Azure Photonics |
| Country of Origin | China |
| Harmonized Code | 90021160 |
