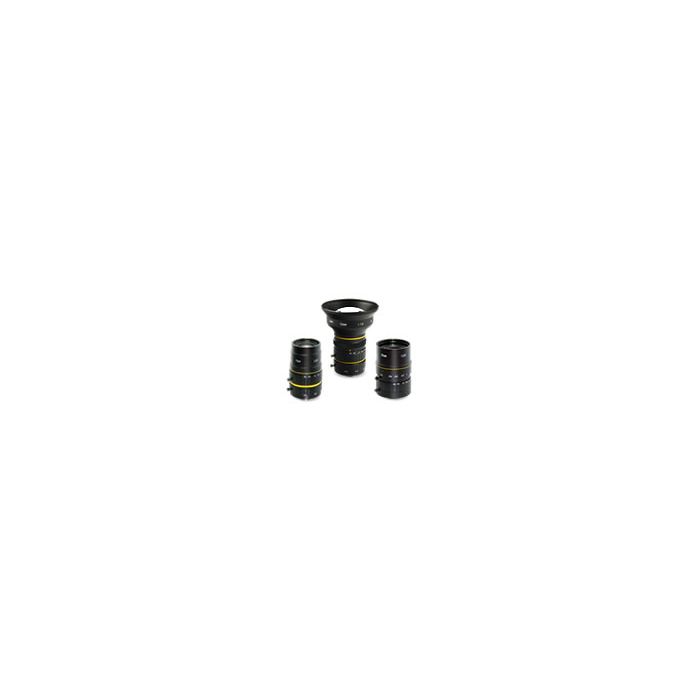

AZURE Photonics 1" 5 Megapixel Machine Vision Lens
SKU
FI-ML5M
- For 5 Megapixel sensors up to 1"
- Focal lengths from 6mm up to 75mm
- Locking focus and iris rings
- Filter thread for all models
- Low distortion and high contrast
The AZURE Photonics / FIFO Optics ML5M lenses are very high quality superior resolution C-mount lenses designed for industrial applications like robotics and machine vision.
They are intended to deliver quality images when used on cameras with 1 inch sensors up to 5 megapixel resolution.
Among the features are locking focus and iris rings for use in areas where the camera may experience significant vibration.
The lenses are coated for 400 - 950nm wavelength.
They are intended to deliver quality images when used on cameras with 1 inch sensors up to 5 megapixel resolution.
Among the features are locking focus and iris rings for use in areas where the camera may experience significant vibration.
The lenses are coated for 400 - 950nm wavelength.
| Model | 1" Format | MOD (mm) | Filter Thread (mm) |
|
| FI-0614MLM | 6.5mm F1.4, for 2Megapixel sensor without focus adjustment |
150 | - |  |
| FI-0614MLM | 6.5mm F1.4, for 2Megapixel sensor | 150 | M43x0.75 |
|
| FI-0620ML5M | 6.5mm F2.0 | 100 | M52x0.75 | |
| FI-1218ML5M | 12mm F1.8 | 200 | M77x0.75 | |
| FI-1620ML5M | 16mm F2.0 | 200 | M37.5x0.75 | |
| FI-2020ML5M | 20mm F2.0 | 300 | M37.5x 0.5 | |
| FI-2520ML5M | 25mm F2.0 | 300 | M43x0.75 | |
| FI-3518ML5M | 35mm F1.8, for 2Megapixel sensor | |||
| FI-7520ML5M | 75mm F2.0 |
| SKU | FI-ML5M |
|---|---|
| Manufacturer | FIFO Optics |
| Country of Origin | China |
| Harmonized Code | 90021160 |
