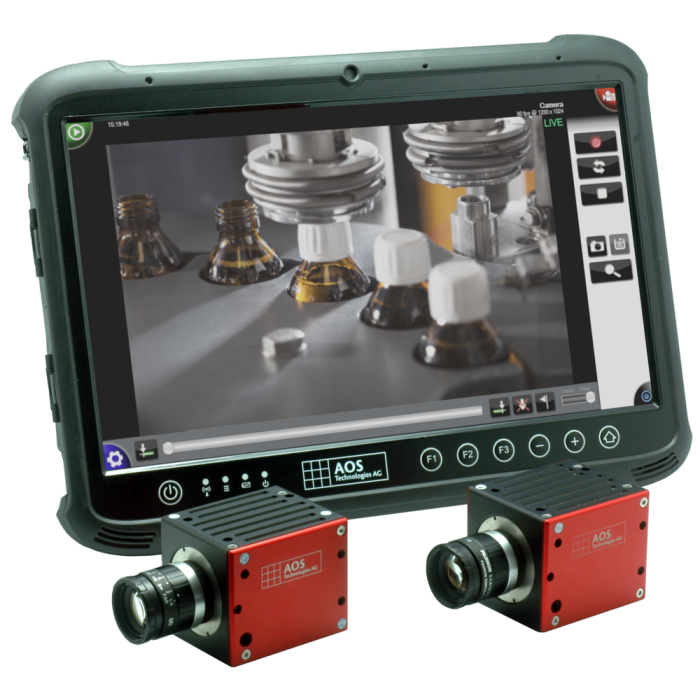

AOS Technologies Promon Scope G3

Plug-and-play High-Speed Camera System

The PROMON SCOPE G3 is the next generation light and compact, ready-to-use high speed image streaming system - now also with support for two cameras.

The PROMON SCOPE G3 Twin System offers you a completely new tool to troubleshoot a production line, where cause and effect are not at the same place - with the two synchronized camera heads.

With the built-in and replaceable Li-ion battery pack, the PROMON SCOPE G3 slow motion production analysis camera will operate up to 1.5h with two and up to 3.5h with one camera head without recharging. Its high capacity solid state disk system records sequences for 40 minutes with option to extend up to 80 minutes. This slow motion industrial camera system is complete with controller and camera and weigh just is just under 2.9 kg (6.4lbs).

PROMON SCOPE G3 is the ideal industrial high speed camera system to temporarily monitor industrial processes for troubleshooting, setup- and fine tuning, as wells as preventive maintenance tasks. The control unit of this slow motion camera system is a mobile, compact and rugged device with a built-in touchscreen display for recording and slow-motion playback.

The cameras are available in color, monochrome or NIR (near infrared).

Features and benefits

• Supports one or two camera heads, synchronized or independent operation
• Ideal for temporary industrial troubleshooting and mainetance applications
• Works on battery up to 1.5h with two cameras, over 3.5h with one camera
• Compact, light and robust, ready to use high speed image streaming system
• Brilliant sunlight readable display, touchscreen operation, similar to a Tablet PC
• Typical recording capacity is 40 minutes, optional 80 minutes
• Available with monochrome, color or NIR (near infrared) camera, in any combination
• Up to 10m cable length per camera
• 80fps at 2048x1088 pixels
  200fps at 1024x 800 pixels
  560fps at 640 x 480 pixels

Accessory kits with transport case, objectives, LED illumination and mounts tailored to the application are available.
