12-channel Electrophoresis Power Module
12-channel Precision High-Voltage Supply for Electrophoresis and Gel Electrophoresis

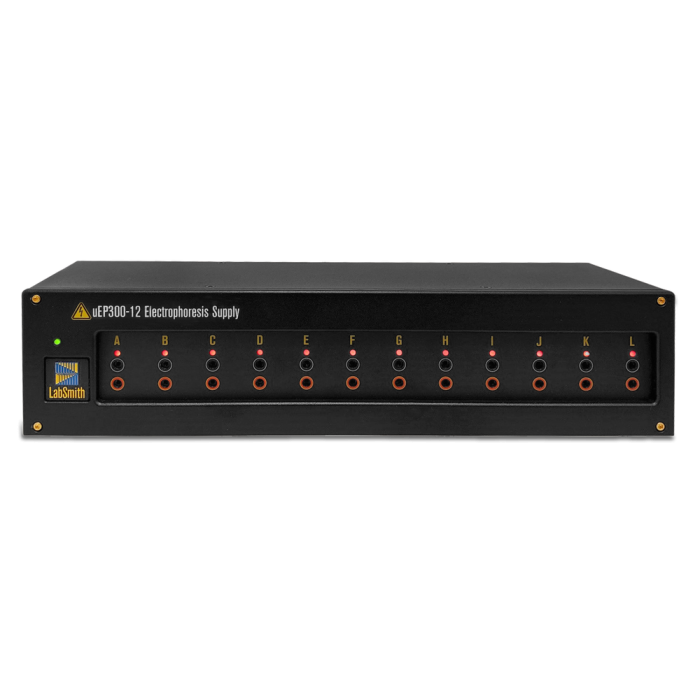

The uEP300-12 is a twelve-channel, fully programmable power supply for control of electrophoresis and gel electrophoresis setups. Each channel can provide constant voltage to 300 V, constant current to 0.25 A, or constant power to 15 W (max 180 W all channels).
The uEP300-12 is part of LabSmith’s uProcess™ platform, which includes hardware devices and uProcess software for constructing, coordinating and automating microfluidic systems. The uProcess software (included with the uEP300-12) lets you control and integrate the instrument into complete systems. You can also use the uEP300-12 in conjunction with uProcess pressure sensors and temperature sensors for constant pressure or temperature modes.
| Specifications | Value |
| Channels | 12 |
| Output Voltage | 300V/channel in 10mV steps |
| Output Current | 0.25A/channel in 10uA steps |
| Output Power | 15W/channel in 10mW steps, 180W max |
| Output terminals |
Tip jacks |
| Output Types | Constant voltage, current or power with automatic crossover, constant pressure or temperature with uProcess sensors |
| Programmability | uProcess sequencing software included |
| Timing | Adjustable in 1ms intervals |
| Interface | USB |
| Housing | Metal, 35.6x10.2x9cm |
The A-EHVC12 high-voltage interface cable set (sold separately) includes 12 black and 12 red cables, all 60" (150 cm) long, with friction fit terminals. The A-MC2-01 microclips can be used with the A-EHVC12 cables. Electrodes are sold separately.
| SKU | LS-uEP300-12 |
|---|---|
| Manufacturer | LabSmith |
| Country of Origin | USA |
| Harmonized Code | 90269000 |
