uProcess Plus Kit
From €7,399.87
To €7,627.55
SKU
LS-uP-Plus
uProcess™ kits offer convenient packages for setting up your microfluidic laboratory.
The kits include pumps, valves, pressure sensors, temperature control components and associated mounting and control hardware and software.

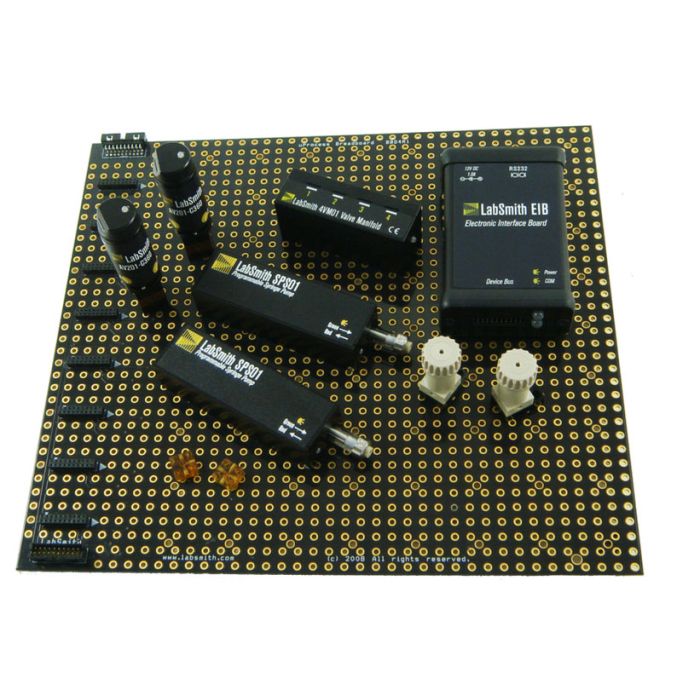

uProcess Plus Kit
Description | Qty | For 360um OD capillary |
For 1/32" OD tubing |
For 1/16" OD tubing |
---|---|---|---|---|
Electronic interface controller with uProcess software | 1 | EIB200 | EIB200 | EIB200 |
Two-position automated valve | 2 | AV201-C360 | AV201-T132 | AV201-T116 |
Manifold for control of up to 4 automatic valves | 1 | 4VM02 | 4VM02 | 4VM02 |
SPS01 syringe pump body | 2 | SPS01 | SPS01 | SPS01 |
Syringe glass and plunger set, specify size | 3 | SG-004-C360 SG-020-C360 SG-080-C360 |
SG-020-T132 SG-080-T132 |
SG-080-T116 |
Manifold for control of up to 4 pressure or temperature sensors | 1 | 4AM01 | 4AM01 | 4AM01 |
Pressure sensor, specify range(s) | 2 | uPS0250-C360-10 uPS0800-C360-10 |
uPS0250-C360-10 uPS0800-C360-10 |
uPS0250-T116-10 uPS0800-T116-10 |
Temperature sensor | 2 | uTS-STD-20 | uTS-STD-20 | uTS-STD-20 |
uTE Thermal-Electric Peltier Module, Includes heat sink and thermal conductive tape, specify size(s) | 2 | uTE01-040808 uTE01-132020 |
uTE01-040808 uTE01-132020 |
uTE01-040808 uTE01-132020 |
4 Channel Power Manifold | 1 | 4PM01 | 4PM01 | 4PM01 |
Tool set for changing syringe glass/plunger | 1 | SPS-TOOLS | SPS-TOOLS | SPS-TOOLS |
Integrated uProcess breadboard with 8 device connectors and chip viewing port | 1 | iBB | iBB | iBB |
Mounting hardware set for iBB | 1 | iBB-TOOLS | iBB-TOOLS | iBB-TOOLS |
One-Piece fitting | 75 | C360-100 | T132-100 | T116-100 |
One-piece plug | 10 | C360-101 | C360-101 | T116-101 |
1 ML Breadboard reservoir | 2 | BBRES-1ML | BBRES-1ML | BBRES-1ML |
5 ML Breadboard reservoir | 2 | BBRES-5ML | BBRES-5ML | BBRES-5ML |
Luer-lock adapter | 2 | C360-300 | T132-300 | T116-300 |
Tee interconnect | 5 | C360-203 | T132-203 | T116-203 |
Cross interconnect | 5 | C360-204 | T132-204 | T116-204 |
Chip reservoir/female Luer taper connector | 5 | C360-405R | C360-405R | - |
Bonded port connector | 16 | C360-400 | T132-400 | T116-400 |
12ml Epoxy bond for ports | 1 | LS-EPOXY | LS-EPOXY | LS-EPOXY |
Luer Lock Disposable Syringe | 2 | LS-SYRINGE-LL | LS-SYRINGE-LL | LS-SYRINGE-LL |
Luer Tip Disposable Syringe | 2 | LS-SYRINGE-LT | LS-SYRINGE-LT | LS-SYRINGE-LT |
microfluidic ChipShop chip: cross with 75x75 um channels, PMMA |
2 | 03-0780-0106-01 | 02-0764-0166-01 | 02-0764-0166-01 |
PEEK capillary or tubing (meters) | 2 | CAP-360-150P | TUBE132-010P | TUBE116-030P |
SKU | LS-uP-Plus |
---|---|
Manufacturer | LabSmith |
Country of Origin | USA |
Harmonized Code | 90269000 |
