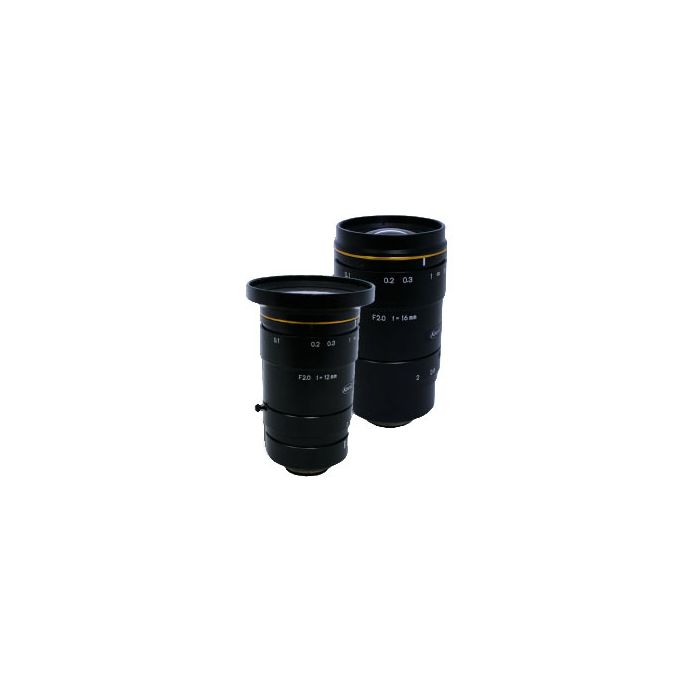

Kowa XC 4/3" 8 Megapixel Machine Vision Lens
SKU
NA-KWXC
- 5 models with focal lengths from 12 mm to 50 mm for 4/3" sensors up to 8 Megapixel
- Image circle 23mm
- C-mount, Manual focus and iris.
- Broad band coating, VIS to NIR
The Kowa XC series 4/3” C-mount lenses are suitable for sensor size up to 23mm diagonal. Resolution of the XC-series is 160lp/mm in the center to match cameras with sensor Truesense Imaging KAI-08050 or CMOSIS MV4000. The XC-series includes 5 different models with focal length between 12mm up to 50mm.
The XC series is constructed to withstand high requirements on vibration, shock and temperature. All models are equipped with a special broadband coating for extraordinary transmission at NIR wave length.
The XC series is constructed to withstand high requirements on vibration, shock and temperature. All models are equipped with a special broadband coating for extraordinary transmission at NIR wave length.
 C-Mount, Metal body, Locking screws, 8 Megapixel |
||||
Model |
4/3" Format |
MOD (mm) |
Filter Thread (mm) |
PDF
|
12.5mm F2.0 |
100 |
55x0.75 |
 |
|
16.0mm F2.0 |
100 |
40.5x0.5 |
|
|
25.0mm F2.0 |
150 |
40.5x0.5 |
|
|
35.0mm F2.0 |
200 |
37.5x0.5 |
|
|
50.0mm F2.0 |
300 |
37.5x0.5 |
|
|
){kind=link}
){kind=link}
){kind=link}
){kind=link}
){kind=link}
| SKU | NA-KWXC |
|---|---|
| Manufacturer | KOWA |
| Country of Origin | Japan |
| Harmonized Code | 90021160 |
