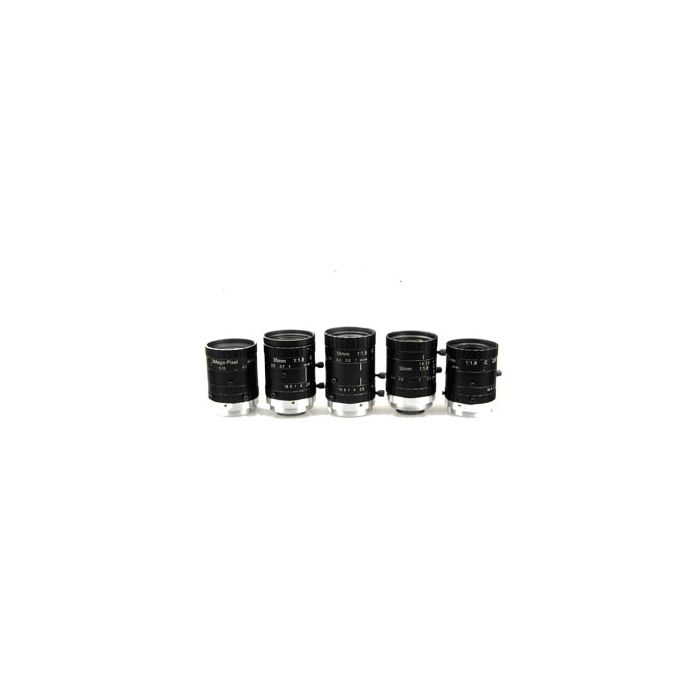

AZURE Photonics M3M Machine Vision Lenses for 2/3" 3 Megapixel sensors
SKU
FI-M3M
7 Models with focal lengths from 8mm to 50mm for 2/3" sensors up to 3Mpixel
- Compact, light-weight
- Low distortion design
- Broadband coated for 400 - 950nm
- C-mount, Manual focus and iris
- Robust metal mechanical design with lock screws and engraved scales for iris and focus.
- Very competitive series for medium-resolution cameras
The FIFO Optics M3M lenses are very high quality C-mount lenses with low distortion designed for cameras with 2/3-inch sensors up to 3 megapixel resolution.
The M3M lenses and comparable in size and weight to 1.5Mpixel lenses, while providing a resolution of 120lp/mm for 2/3" 3 megapixel sensors.
The M3M lenses and comparable in size and weight to 1.5Mpixel lenses, while providing a resolution of 120lp/mm for 2/3" 3 megapixel sensors.
| Model | 2/3" Format | MOD (mm) | Filter Thread (mm) |
|
| FI-0814M3M | 8mm F1.4 | 100 | 37.5x0.5 |  |
| FI-0918M3M | 9mm F1.8 | 100 | 27x0.5 | |
| FI-1218M3M | 12mm F1.4 | 100 | 27x0.5 | |
| FI-1618M3M | 16mm F1.4 | 100 | 27x0.5 | |
| FI-2518M3M | 25mm F1.4 | 150 | 27x0.5 | |
| FI-3518M3M | 35mm F1.4 | 250 | 27x0.5 | |
| FI-5018M3M | 50mm F1.8 | 200 | 27x0.5 | |
| SKU | FI-M3M |
|---|---|
| Manufacturer | FIFO Optics |
| Country of Origin | China |
| Harmonized Code | 90021160 |
