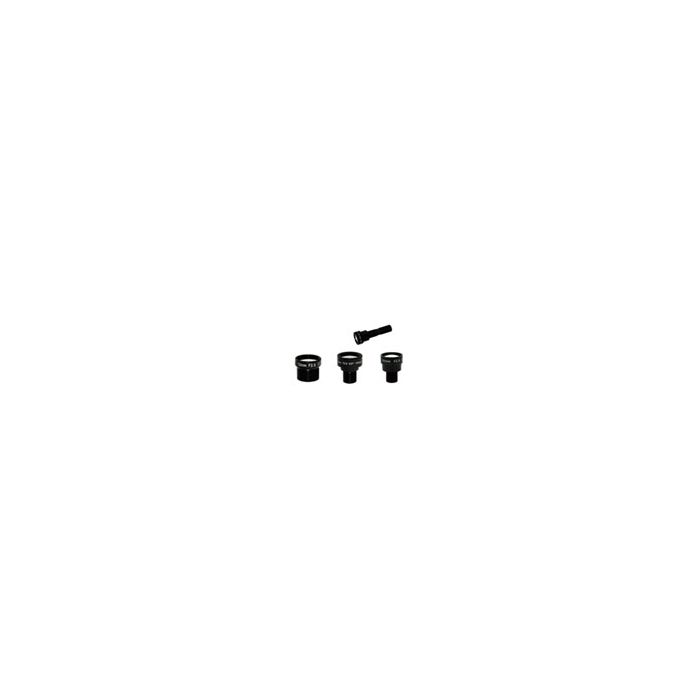

Azure Photonics Board lenses for 10 Megapixel, 2/3" sensor
SKU
AZ-B10M
High resolution board lenses for 10Megapixel, 2/3" sensors.
- Focal lengths from 12 to 50mm
- Fixed iris
- Macro types optimized for short working distance
- Very low cost compared to standard 10Mpixel lenses
The macro type lenses -MAC are designed for low distortion and good edge sharpness at small working distances.
 |
2/3" board lenses for 10 Megapixel cameras |
| Model | Focal length Aperture |
Working distance | Distortion | |
| AZ-F1225FM | 12mm F2.5 | 100mm -inf | -1.2% |
|
| AZ-F1620FM | 16mm F2.0 | 200mm - inf | -0.25% | |
| AZ-F2520FM | 25mm F1.6 |
200mm - inf |
-0.12% | |
| AZ-1228MAC | 12mm F2.8 | 100 - 500mm | -0.25% |
|
| AZ-1622MAC | 16mm F2.2 16mm F5.6 16mm F8.0 |
100 - 500mm | 2.5% | |
| AZ-2525MAC | 25mm F2.5 25mm F5.6 25mm F8 |
100 - 500mm | 0.5% | |
| AZ-F3528MAC | 35mm F2.8 | 300mm - inf | -0.4% |
|
| AZ-F5040MAC | 50mm F4.2 | 500mm - inf |
0.25% | |
| SKU | AZ-B10M |
|---|---|
| Manufacturer | Azure Photonics |
| Country of Origin | China |
| Harmonized Code | 9002.11 |
